How to Assemble a 03-04 Cobra SC “Terminator” Engine ©2010 By ProWeld Performance Parts
I have taken numerous Phone Calls, E-mails and Written Letters asking How to Assembly one Part or the Other
on these Great Engines. Generally I can talk one through the process, but it takes time and doesn't really work
that well for the rest of assembly. This new Manual is just the ticket for those wishing to Assemble,
or just know more about the 03-04 Cobra Engine. It is written in
a very laded back, easy to understand way, with many pictures and diagrams on the subject. In all, there are 124 pages
and several hundred photographs and diagrams to make sure you get the information you need to assemble your engine right.
In it, I also give all Torque Specifications for a Factory Correct assembly.
The Assembly Manual starts with a fully assembled Long Block as the basis for the process.
From there we add each piece needed to build-up the engine to a complete and ready to go assembly. Along the way, I
help break-down the Lingo, or Ford speak as I call it, and let you know what
each part is called, where it goes, and what it does. We also explain the many variations of the engine, like Return
or Return less Fuel Systems, and many of the popular options available today. There is also plenty of conversation on
the Electronics of the Engine, what they do, Where they are and how they function. I'm sure anyone
interested in the 03-04 Cobra Engine will enjoy this informative and
interesting Manual.
The Assembly Manual is only offered in PDF form, We send you
a copy and you can view it on your computer, or print out the pages you need or all of it. For current
customers, we give you a 25% price break on the Assembly Manual,
just order it and we will refund the 25% once you are recognized as a ProWeld
Customer. For first time customers, we will deduct your 25%
of the cost of the Manual with an additional $75.00 purchase
at the time of order!! You get a wonderfully helpful Manual and Great parts in one package,
what could be better!!
For more details on the 03-04 Cobra manual...Click here
|
|
|

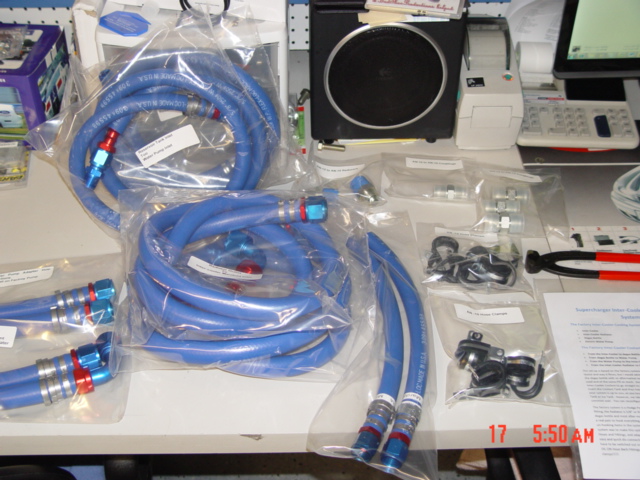

03-04 Cobra Inter-Cooler Coolant System
Our Inter-Cooler Coolant System is for 03-04 Cobra Engines and really any engine that uses the same basic design layout,
meaning a Front Mounted Radiator, Coolant Circulation Pump, Reservoir,
and Inter-Cooler Water to Air Inter-Cooler.
The whole idea of our system is to take the complexity and random component fitting sizes out of the equation, and
give a comprehensive system that supplies the system with coolant through a common size hose with the least amount of restriction
possible. The stock Ford Cobra system is very complex, ugly and expensive to piece together.
It also allows for excessive heat soaking of the coolant lines, which reduces the systems effectiveness.
System fittings, very between 5/8" , 3/4" and 7/8", which makes for problems when trying to connect
a common hose between the many parts of the system. Another huge problem is the ability to disconnect or
remove the parts from the system, weather for repair or for access to other parts. The typical hose connection
is very stiff and generally requires damage to the hose to remove. This isn't that bad for the average
guy that never works on his engine, but for a racer, or car builder that has to mock things up time and again to get the fit
right, or service the engine for basic between round maintenance, this gets to be a problem. The other
consideration is looks, yes all car owners are conscious of who their engines look, and nothing looks worse than a mess of
ugly black rubber hoses. When we designed our Inter-Cooler Hose System,
we had several basic ideals: 1.
Take the complexity out of the
system. We thought it through, so you don't have to. 2. Design a system that flows better than the original
system. We keep the hose sizes maximized to take advantage of better flow, and allow bigger, better
flowing, circulation pumps. 3.
Make it easy to work with.
We have most lines with at least one end pre-terminated, and provide complete instructions. Our
kits come complete with all the Adapters, Reducers, Couplings, Hose, Fittings and Clamps needed, it a complete
kit that solves all the issues. 4.
Design the system so repairs and
maintenance can be performed easier, easy to make and break fittings with rock solid reliability.
Our system converts all the push-on type fittings to a Threaded, AN type System! 5.
Make the system look good, use
quality AN Fittings and Hoses…Plus offer accessories like the Temperature Gauge and Pressure
Gage Kits, to monitor system performance. 6. We use only Oetiker Single Ear Stainless Steel Clamps in our kits, these clamps have
a very sleek and modern look to them, while providing a leak free seal. They provide a custom look and
we even include a set of Oetiker crimping Plies with the kit. 7. Keep it flexible….that
way individuals could use or system on other then stock Cobra Mustangs. All Inter-Cooler system consist
of the same parts, so by offering systems of different lengths, we could accommodate 99% of those wishing to use our system
for their individual application. We supply each push-on fitting, which is
all of the stock fittings, with short sections of AN Hose, one end is attached to the barbed fitting, and the other comes
with a AN Swivel Type Threaded Fitting. Once all the barb or push-on fittings have been converted to our
adapter hoses, then they simply get connected up by similar hoses, with these having AN fittings on both ends, which makes
the connection a breeze, and future disconnection even easier. We can also accommodate any custom layout
you might have, give us a call.
  For more details on the Inter-Cooler Coolant Hose System....Click Here
|
|
|

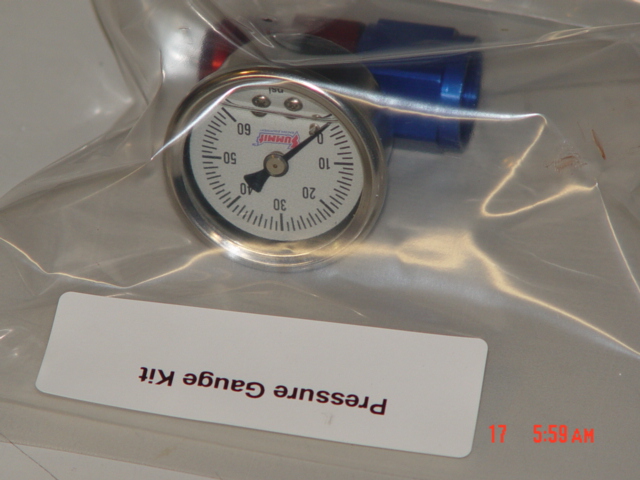

Pressure Gauge Kit One accessory we have to the Inter-Cooler coolant
Hose System, is the Pressure Gauge Kit. This allows you to monitor the system and its circulation Pump

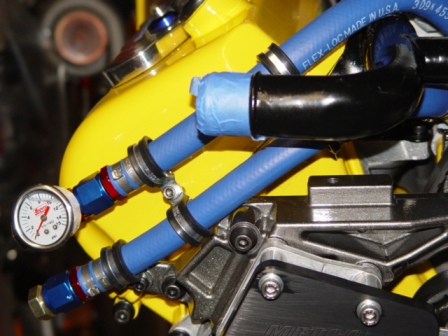

easily. We typically mount it right at the inter-section where the coolant exits the inter-cooler, up you
can mount it anywhere you see fit. We use a high quality stainless steel, liquid filled pressure gauge,

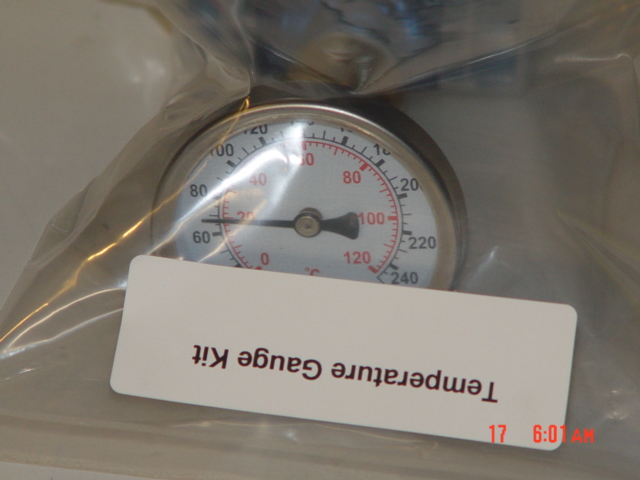

and all necessary fittings are included for a easy to install option. Temperature Gauge Kit
The Temperature Gauge Kit, like the Pressure Gauge Kit, is for monitoring the Inter-Cooler Coolant System.
You have to know what your system is doing to get the most out of it, and to prevent damage to the engine.
our easy to install system, allows you to monitor the inter-cooler coolant, either as it enters the inter-cooler or
as it exists, or both with two kits. We use only the best materials, with stainless steel gauge, and all
necessary fittings included.
  For more details on the Inter-Cooler Coolant Hose System Pressure Gauge or Temp gauge....Click Here
Inter-Cooler Coolant Circulation Pumps We offer two different Circulation Pumps, one is the stock
Ford 03-04 Cobra - Lightning Pump and the other is a Billet Aluminum Meziere
HP 20 Gal/Min Pump. Both are very popular, and give great service, but the Stock Ford Pump only flows at 8 Gal/Min,
while the Meziere pump flows over twice that amount. If purchasing the Meziere pump, along with the Coolant
Hose Kit, you will get the correct screw in fittings for that pump. The Ford replacement pump uses Push-on
fittings, which are standard in the kit.

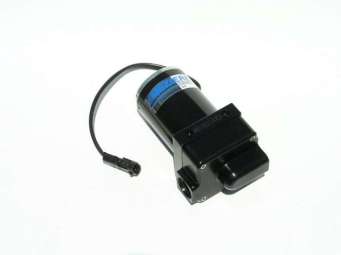

Ford (Bosch) OEM Circulation Pump

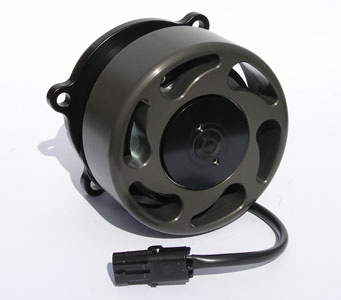

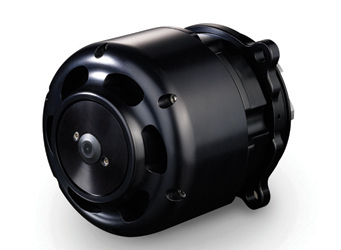

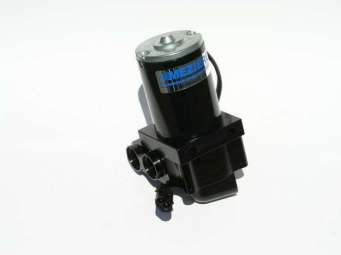

Meziere, Billet Aluminum Circulation Pump
We also have all Radiator Hoses, Heater Hoses and Thromstste Housings available at Pro Weld.
Plus Custom Steering Hoses & AC Hoses!
|
|
|
Finally, A Breather System that
works on the 4-Valve Cobra Engine!
| | ProWeld has a new Breather System that is just the ticket for you 4-Valve or Cobra Engine.
Our Breather System
incorporates large AN-10 Hoses and Fittings, for easy, rapid air movement. We have special designed Breather
Fittings that plug right into the Valve Covers, for a no-hassle install. The Hoses come pre-terminated
and ready to install, or you can order a ready to assemble system for that special installation. Our Catch
Tank is aluminum and has 3/8' NPT fittings and a convenient Drain-Cock in the bottom for easy draining. For 03-04 Cobra Engines, the kit comes ready to mount
with mounting location as shown in pictures. Other installations come with universal tab that allows easy
mounting in custom areas. Either way, you can't go wrong with our new Cobra
Breather System
ProWeld has a new Breather System that is just the ticket for you 4-Valve
or Cobra Engine.
Our Breather System incorporates large AN-10 Hoses and Fittings, for easy, rapid air movement.
We have special designed Breather Fittings that plug right into the Valve Covers, for a no-hassle install.
The Hoses come pre-terminated and ready to install, or you can order a ready to assemble system for that special installation.
Our Catch Tank is aluminum and has 3/8' NPT fittings and a convenient Drain-Cock in the bottom for easy draining.
For 03-04 Cobra Engines, the kit comes ready to mount
with mounting location as shown in pictures. Other installations come with universal tab that allows easy
mounting in custom areas. Either way, you can't go wrong with our new Cobra
Breather System |
|
For more details on the 4-Valve Breather System....Click Here
|
|
|

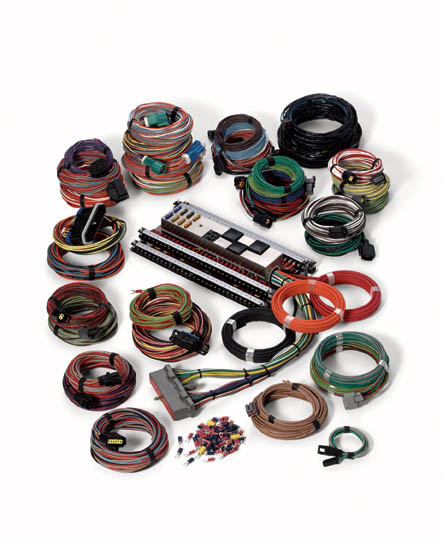

Engine Wiring Harness We are a Detail Zone dealer, and carry a complete line of
wiring harnesses for all modular engine. Take the trouble out of wiring these engines with a new, wiring
harness that fits your car, not just the one you barrowed it from!
|
|
|
